Alloy Steel Pipe Fittings
Seamless & welded alloy steel butt-weld fittings — elbows, tees, reducers and return bends in chrome-moly WP grades for high-temperature power and refinery piping.
Product Overview
Our alloy steel fittings range completes the piping circuit — directional and branch connections, diameter transitions and terminations — manufactured to the same chrome-molybdenum grade families as our alloy steel pipe stock so material properties stay consistent across a project.
Fittings are available seamless or welded, in the full dimensional range from ASME B16.9, and are dispatched with matching mill certification and heat treatment records to your pipe order.

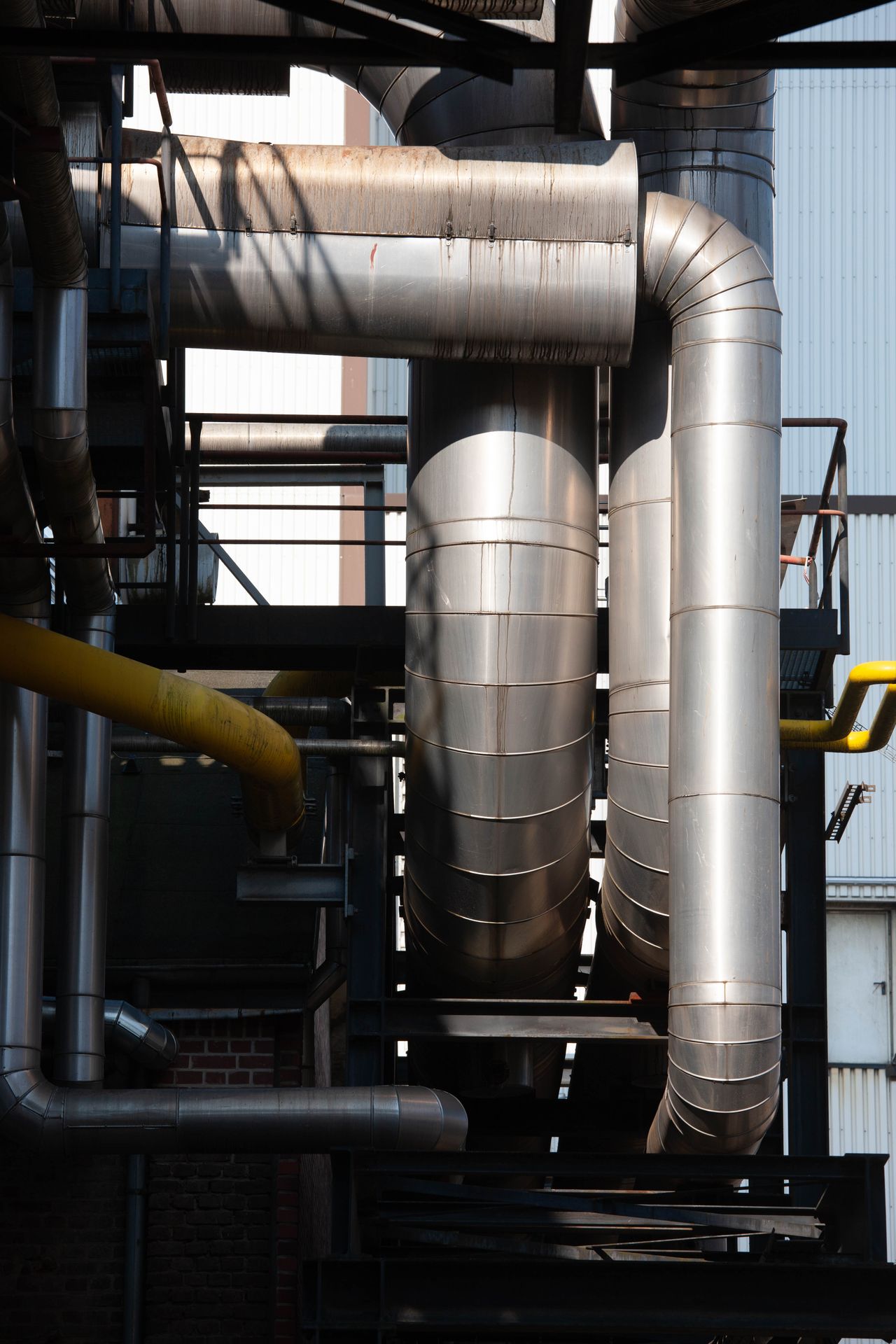

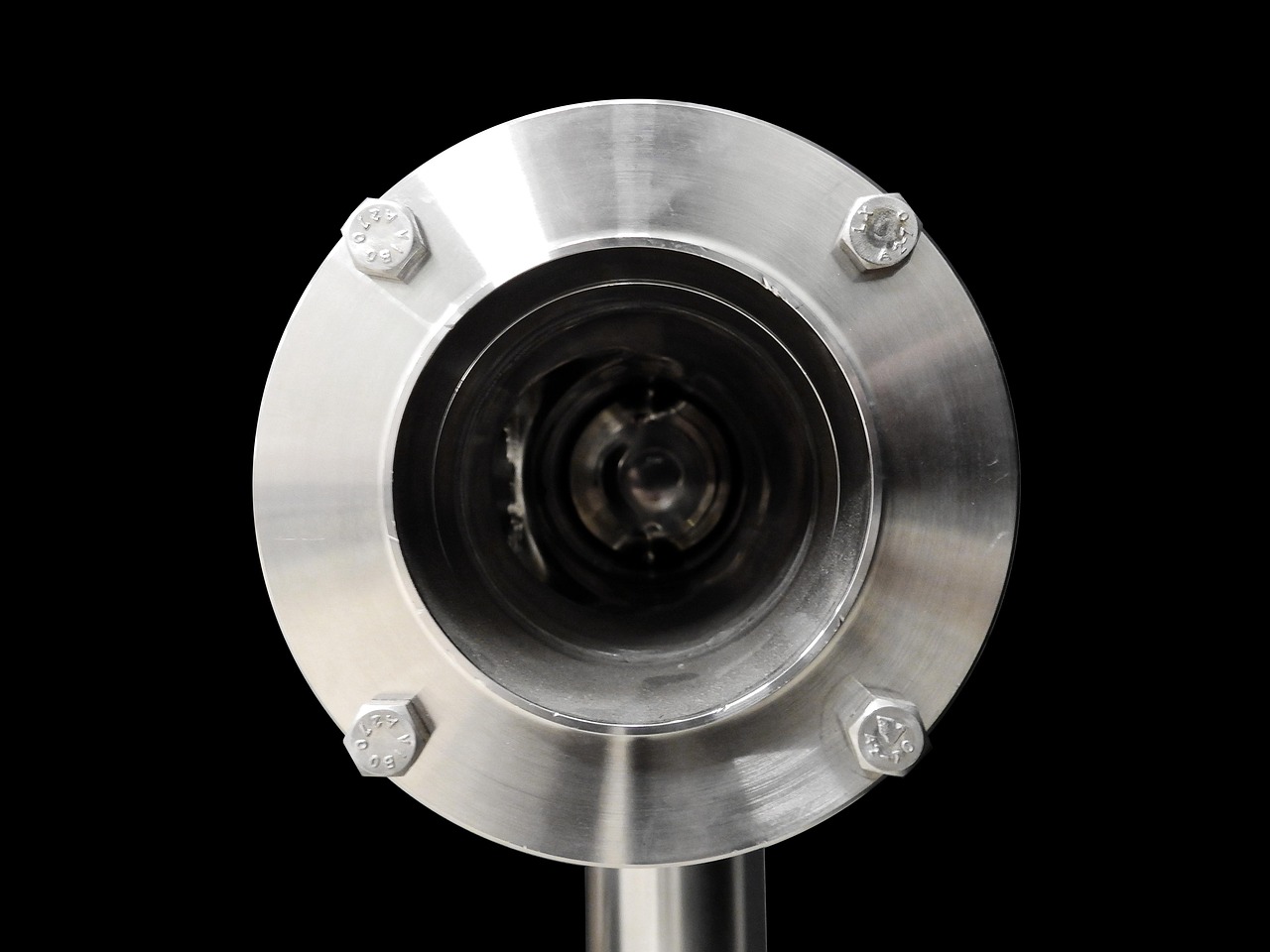

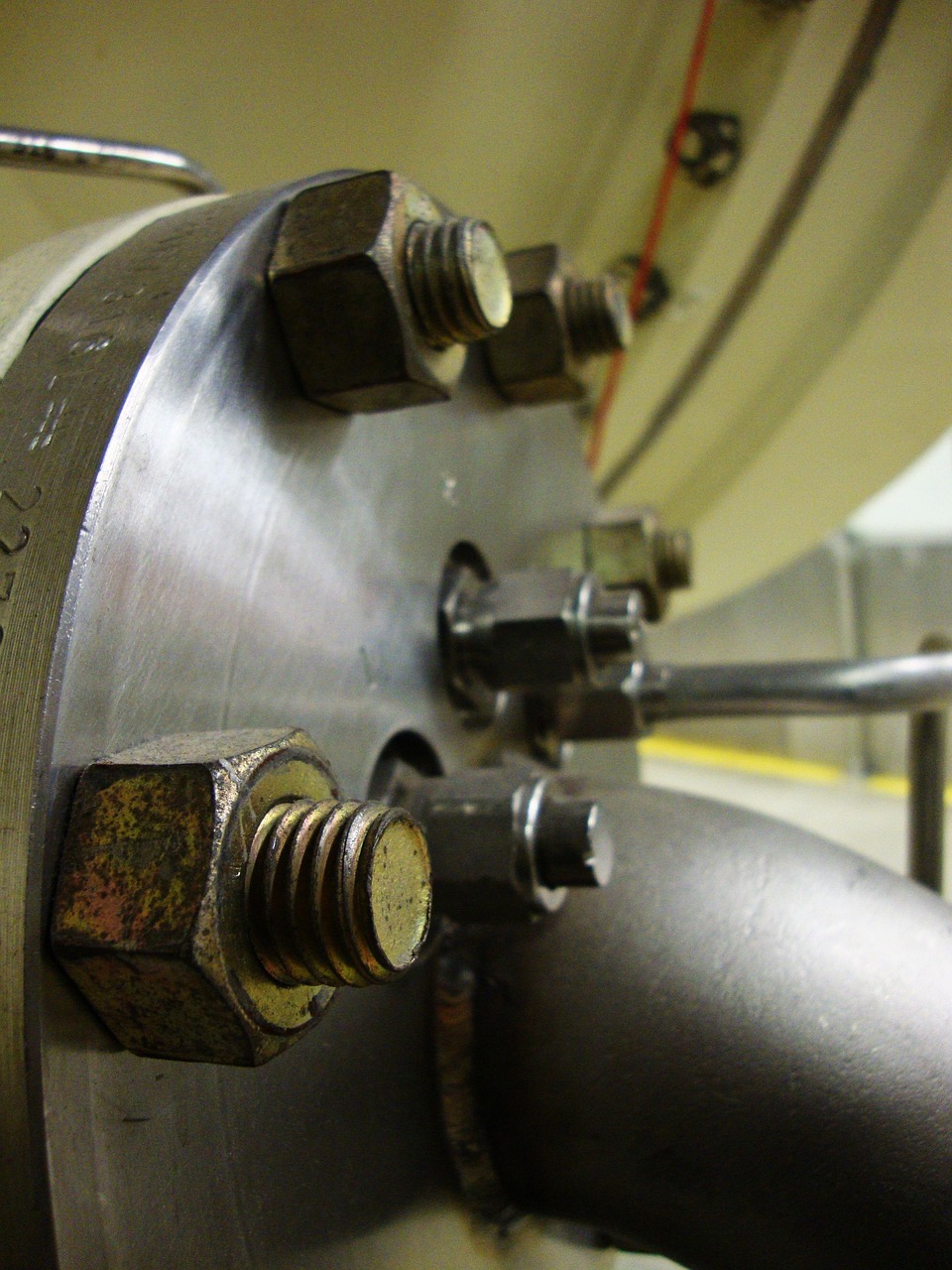

Alloy Steel Pipe Fittings — In Our Stockyard
Fitting Types & Standards
| Type | Standard | Description |
|---|---|---|
| 90° / 45° Elbow (LR & SR) | ASME B16.9 | Long & short radius directional change fittings |
| Equal / Reducing Tee | ASME B16.9 | Branch connections off a main run |
| Concentric / Eccentric Reducer | ASME B16.9 | Pipe diameter transitions |
| Return Bend (180°) | ASME B16.9 | U-shaped flow-reversal fitting |
| Stub End (Lap Joint) | MSS SP-43 | Used together with lap joint flanges |
| Cap | ASME B16.9 | Pipe end closure fitting |
Specifications
- Size Range1/2″ – 48″ NB
- ThicknessSCH 40 – XXS
- Material GradesAlloy WP1, WP5, WP9, WP11, WP22, WP91
- ManufactureSeamless & Welded
- End TypeButt-Weld, Bevelled
- TestingDimensional, RT, PMI on request
- CertificationEN 10204 3.1 / 3.2 Mill Test Cert.
- PackingPalletised export crates
Technical Note — Fittings are matched wall-to-wall with the connecting pipe schedule to avoid step transitions at welds, and PMI is available on every lot to confirm chromium and molybdenum content before dispatch.
Applications
Power Generation
Refineries
Petrochemical Plants
Boilers & Heat Exchangers
