Hastelloy Flanges
Hastelloy C-276 & C-22 flanges for chemical reactor, flue-gas desulphurisation and pharmaceutical piping.
Product Overview
Hastelloy flanges connect the most corrosion-critical piping loops we supply — chemical reactor circuits and flue-gas desulphurisation systems handling wet chlorine and mixed acid condensates that would rapidly attack lesser alloys.
Weld neck and blind types are held in C-276 and C-22, forged and machined to ASME B16.5.

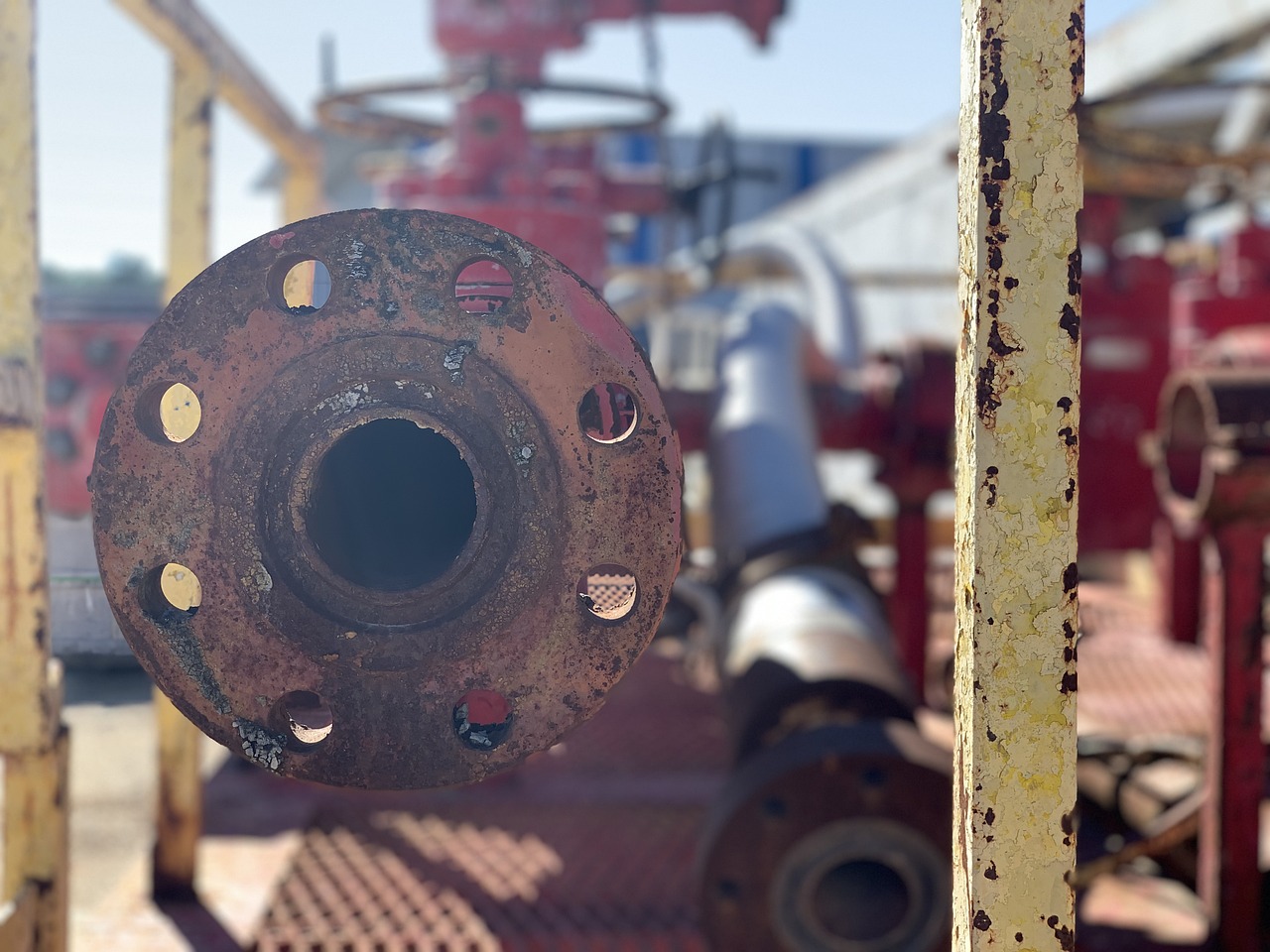

Hastelloy Flanges — In Our Stockyard
Flange Types & Standards
| Type | Standard | Description |
|---|---|---|
| Weld Neck | ASME B16.5 | Reactor & FGD piping connections |
| Blind Flange | ASME B16.5 | Line & vessel opening closure |
Specifications
- Size Range1/2″ – 16″
- Pressure Class150# – 1500#
- FacingRaised Face, RTJ
- Material GradesN10276, N06022
- ManufactureForged, machined to ASME B16.5
- TestingPMI, Hardness, UT on request
- CertificationEN 10204 3.1 Mill Test Cert.
- PackingPalletised, bore-plugged for export
Technical Note — PMI verification is applied to every Hastelloy flange forging prior to machining, since molybdenum content directly governs pitting resistance in the chloride-rich services these flanges serve.
Applications
Chemical Reactors
Flue Gas Desulphurisation
Pharmaceutical
Pollution Control
